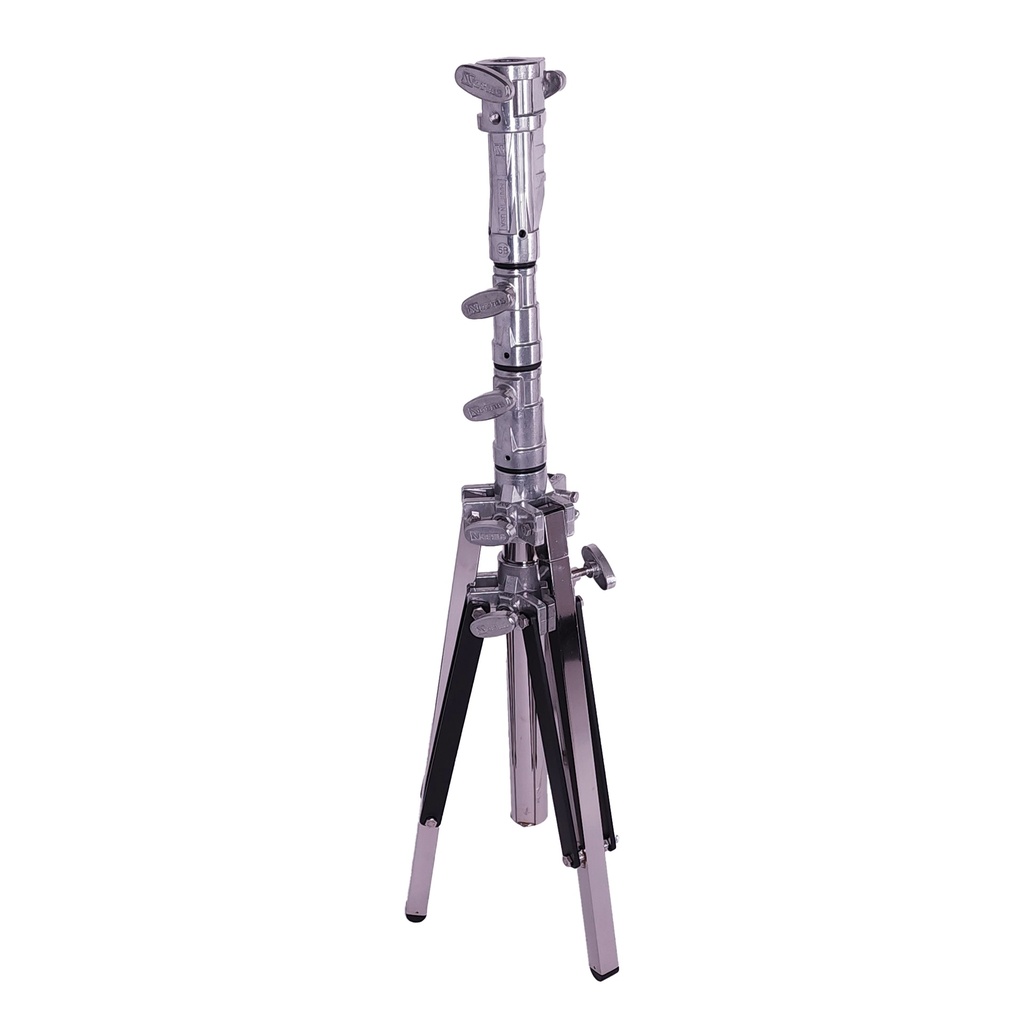

Big Low Boy Combo Walker Stand 2R with Leveling Leg Steel - 1" Leg
Heavy-duty cinema Combo Stand with a maximum elevation of 5' 7" (172.1 cm). Precision engineered in Hollywood, California, USA. Features dual 1-1/8" Junior receiver with pop-up 5/8" Baby pin and Rocky Mountain leveling leg. Backed by the First-Ever Full Lifetime Warranty. Available in classic Hollywood Triple-Chrome or the Norms-exclusive Void Black electrostatic matte powder coat for zero-glare studio stealth and 15x faster thermal cooldown.
SKU:
GST-SSVTL-2W1
Big Low Boy Combo Walker Stand 2R with Leveling Leg Steel - 1" Leg
Engineering Fact Sheet & Mechanical Specifications
Elevation & Weight Metrics Imperial / Metric
| Maximum Height | 5' 7" (172.1 cm) |
| Minimum Height | 2' 11.5" (90.2 cm) |
| Total Stand Weight | 18.5 lbs (8.4 kg) |
| Base Footprint Diameter | 2' 7" (78.7 cm) |
| Working Load Limit (WLL) | 88.0 lbs (40.0 kg) on Low Boy / 66β77 lbs (30β35 kg) on High Combo |
Mechanical Architecture Hardware Standards
| Floor Clearance | 3.5" (8.9 cm) |
| Folded Dimensions | 3' 3" H Γ 4" W |
| Riser Column Sections | 2 Telescoping Sections |
| Head / Mounting Interface | Combo Head: 1-1/8" Junior Recever & 5/8" Baby Pin |
| Base & Leg Architecture | 1" Walker Leg |
| Leveling Leg (Rocky Mtn) | Yes |
Low Boy Combo Physics & Heavy Luminaire Stability
Hollywood Stage ProtocolsUltra-Low Center of Mass & 88.0 lbs Payload
88.0 LBS LOW COMBO WLLCompact elevation range of 3' 2" to 6' 4" (96.5β193.0 cm) places heavy fixtures low to the ground. Rated for 88.0 lbs (40.0 kg) direct vertical load to support heavy 1.2Kβ4K HMI fresnels, Maxi-Brutes, and heavy junior boom arms without high-center-of-gravity tipping risks.
Dual Junior / Baby Mounting Top
1-1/8" RECEIVER + 5/8" PINFeatures a dual mounting top with a 1-1/8" Junior receiver and a pop-up 5/8" Baby pin with captive safety retaining lock, allowing instant switching between heavy junior fixtures and standard baby hardware.
Rocky Mountain Leveling on Stage Ramps
TRUE VERTICAL PLUMBThe built-in telescoping leveling leg extends to maintain true vertical plumb (β€ 0.5Β°) on soundstage ramps, raked seating risers, and curbs without wooden cribbing.
Stand Base Geometry & Soundstage Mobility Guide
Stage Mobility ArchitecturesLow Boy / Star Head Base
1.0" CLEARANCE β’ 100 LBS WLLβ’ Zero-Flex Tracking Platform: 100.0 lbs WLL supports heavy camera sliders (Dana Dolly) and built cinema camera rigs.
β’ Low Center of Mass: Maximum dynamic stability during rapid camera dolly sweeps and low-angle floor perspectives.
Other Available Hollywood Base Architectures:
Compare alternative models & explore direct linksWalker Base with Leveling Leg
ALTERNATIVEβ’ Telescoping Rocky Mountain Leg: Extends up to 14" to maintain true vertical plumb (β€ 0.5Β°) on ramps, curbs, and soundstage slopes.
β’ Closed Square Box Tube: Delivers extreme torsional rigidity under dynamic cantilevered boom and light modifier moments.
β’ Triangular Base Footprint: Stances up to 4' 7" (139.7 cm) provide high anti-tipping threshold.
Arched Roller Base (7.0" Cable Clearance)
ALTERNATIVEβ’ 7.0" (17.8 cm) Feeder Cable Clearance: Arched spider casting rolls freely over bundled 4/0 stage power feeder cables and distro boxes.
β’ Dual-Action Braked Casters: Foot brake simultaneously arrests wheel roll and swivel rotation for positive lockdown.
β’ Single-Grip Repositioning: Effortlessly reposition 100+ lb overhead packages on studio floors without a multi-person lift crew.
Choose Your Finish: Classic Triple-Chrome vs. Norms Void Black Edition
Both finishes share identical heavy-wall ASTM A513 DOM steel risers, ductile iron castings, and our First-Ever Lifetime Stand Warranty. Select the surface treatment engineered for your production environment:
Classic Triple-Chrome
The time-tested Hollywood benchmark. Built with multi-layer electroplated copper, nickel, and micro-crack chrome over precision DOM steel for ultra-low friction riser movement and maximum surface hardness.
- Ultra-Smooth Telescoping: Mirror-polished chrome provides near-frictionless riser adjustment inside nylon brake collars.
- Maximum Scratch & Wear Hardness: High Rockwell surface hardness resists dings and scratches from heavy grip cart transport.
- Fleet Uniformity: Matches existing studio rental house inventories across Los Angeles and worldwide.
Void Black Edition
Engineered exclusively by Norms Studio Equipment. Electrostatically applied thermoset matte powder coat thermally cured at 400Β°F (204Β°C) for zero-glare stealth and accelerated thermal dissipation.
- Zero Specular Glare (<2% Reflectance): Eliminates camera reflections in glass, cars, eyewear, and lens flare hotspots.
- Rapid Radiative Cooldown (Ξ΅ ≈ 0.92): Radiates stored heat 15x faster than chrome when 18kW HMIs/LEDs are cut at wrap.
- Virtual Production (ICVFX) Ready: Absorbs stray spill on Unreal Engine 5 LED volume walls with zero screen bounceback.
- All-Weather Tactile Grip: Textured matte surface ensures positive non-slip handling with gloved or wet hands.
Complete Your Combo Stand Package
Features dual 1-1/8" Junior Receiver & pop-up 5/8" Baby Pin. Pairs with 4-1/2" Lollipop Grip Heads, braked combo caster wheels, and 25β35 lb heavy saddle sandbags.
First-Ever Full Lifetime Warranty on Grip Stands
All Norms grip stands are backed by a complete lifetime warranty against manufacturing defects.
Product Info
| Options / Variations | |
|---|---|
| Color | Chrome or Void Black |
| Material | Steel |
| Specifications - Steel | |
|---|---|
| Weight | 18.5 lbs | 8.4 kg |
| Capacity | TBA |
| Max Height | 5' 7" | 172.1 cm |
| Min Height | 2' 11" | 90.2 cm |
| Folded Width | 4" | 10.2 cm |
| Riser Sections | 2 |
| Footprint | 2' 7" | 78.7 cm |
| Floor Clearance Height | 3.5" | 8.9 cm |
| Stand Adapter/Head Type | Combo Head: 1-1/8" Junior Recever & 5/8" Baby Pin |
| Leveling Leg | Yes |
| Folded Height | 3' 3" | 99.1 cm |
