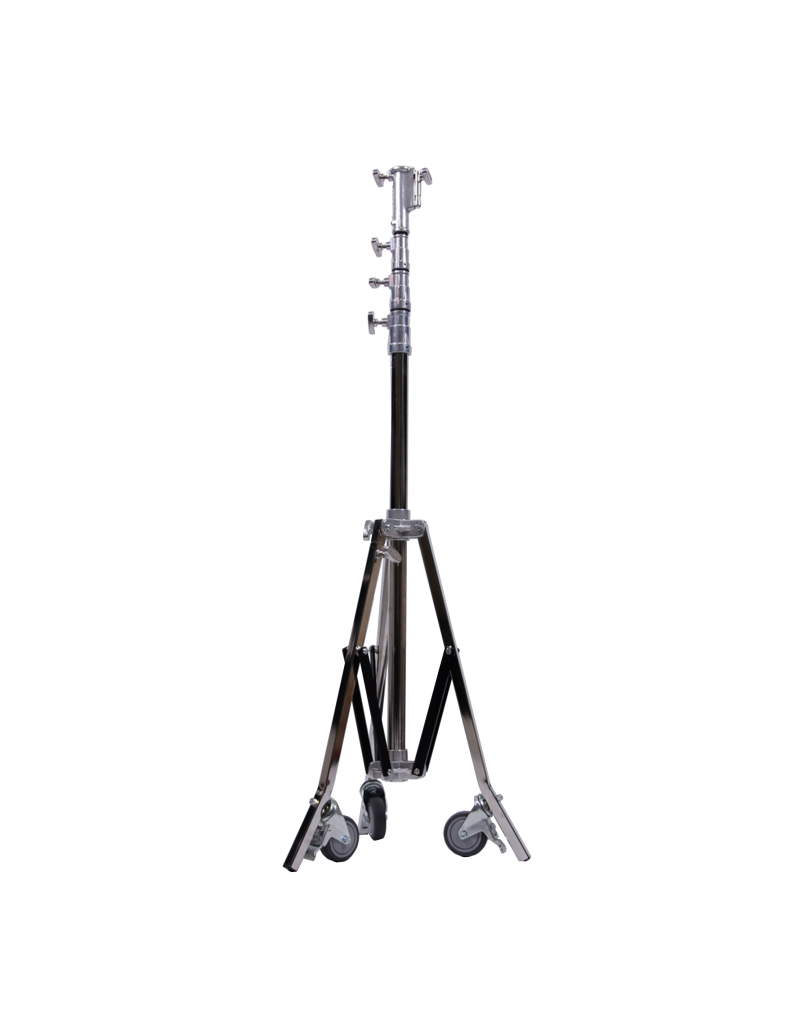

Sky Junior Roller Stand 3R with Leveling Leg Steel - 1" Leg
Professional film grip stand with a maximum elevation of 14' 2" (431.8 cm). Hollywood, California, USA. Backed by the First-Ever Full Lifetime Warranty. Available in classic Hollywood Triple-Chrome or the Norms-exclusive Void Black electrostatic matte powder coat for zero-glare studio stealth and 15x faster thermal cooldown.
SKU:
GST-SSVJS-3R1
Sky Junior Roller Stand 3R with Leveling Leg Steel - 1" Leg
Engineering Fact Sheet & Mechanical Specifications
Elevation & Weight Metrics Imperial / Metric
| Maximum Height | 14' 2" (431.8 cm) |
| Minimum Height | 5' 2.5" (158.8 cm) |
| Total Stand Weight | 34.75 lbs (15.8 kg) |
| Base Footprint Diameter | 4' 6" (137.2 cm) |
| Working Load Limit (WLL) | 25.0 lbs (11.3 kg) Standard Working Load Limit |
Mechanical Architecture Hardware Standards
| Floor Clearance | 6" (15.2 cm) |
| Folded Dimensions | 5' 2.5" H Γ 1' 3" W |
| Riser Column Sections | 3 Telescoping Sections |
| Head / Mounting Interface | Combo Head: 1-1/8" Junior Recever & 5/8" Baby Pin |
| Base & Leg Architecture | 1" Roller Leg |
| Leveling Leg (Rocky Mtn) | Yes |
Cinema Rigging Physics & Mechanical Safety Standards
Hollywood Stage ProtocolsHollywood High-Tensile Steel Architecture
FACTORY DIRECT QUALITYPrecision engineered in Hollywood, California, USA with heavy-wall USA-milled steel tubing and solid cast knuckles engineered for maximum tensile strength, positive brake lockup, and lifetime durability on working film sets.
The Right-Hand Rule of Rigging Safety
CLOCKWISE GRAVITY LOCKAlways orient extension arms and modifiers so load gravity acts clockwise relative to the T-handle knob. Downward weight actively self-tightens the brake pads.
High-Leg Sandbag Ballast Protocol
MOMENT COUNTERWEIGHTINGAlways place a minimum 25 lb saddle sandbag over the highest leg pointing in the direction of the cantilevered load to prevent stand tipping on set.
Stand Base Geometry & Soundstage Mobility Guide
Stage Mobility ArchitecturesArched Roller Base (7.0" Cable Clearance)
7.0" FEEDER CLEARANCE β’ BRAKEDβ’ Dual-Action Braked Casters: Foot brake simultaneously arrests wheel roll and swivel rotation for positive lockdown.
β’ Single-Grip Repositioning: Effortlessly reposition 100+ lb overhead packages on studio floors without a multi-person lift crew.
Other Available Hollywood Base Architectures:
Compare alternative models & explore direct linksWalker Base with Leveling Leg
ALTERNATIVEβ’ Telescoping Rocky Mountain Leg: Extends up to 14" to maintain true vertical plumb (β€ 0.5Β°) on ramps, curbs, and soundstage slopes.
β’ Closed Square Box Tube: Delivers extreme torsional rigidity under dynamic cantilevered boom and light modifier moments.
β’ Triangular Base Footprint: Stances up to 4' 7" (139.7 cm) provide high anti-tipping threshold.
Low Boy / Star Head Base
ALTERNATIVEβ’ 1.0" (2.5 cm) Ultra-Low Clearance: Inverted spider casting places 1-1/8" Junior Star Head inches above the floor deck.
β’ Zero-Flex Tracking Platform: 100.0 lbs WLL supports heavy camera sliders (Dana Dolly) and built cinema camera rigs.
β’ Low Center of Mass: Maximum dynamic stability during rapid camera dolly sweeps and low-angle floor perspectives.
Choose Your Finish: Classic Triple-Chrome vs. Norms Void Black Edition
Both finishes share identical heavy-wall ASTM A513 DOM steel risers, ductile iron castings, and our First-Ever Lifetime Stand Warranty. Select the surface treatment engineered for your production environment:
Classic Triple-Chrome
The time-tested Hollywood benchmark. Built with multi-layer electroplated copper, nickel, and micro-crack chrome over precision DOM steel for ultra-low friction riser movement and maximum surface hardness.
- Ultra-Smooth Telescoping: Mirror-polished chrome provides near-frictionless riser adjustment inside nylon brake collars.
- Maximum Scratch & Wear Hardness: High Rockwell surface hardness resists dings and scratches from heavy grip cart transport.
- Fleet Uniformity: Matches existing studio rental house inventories across Los Angeles and worldwide.
Void Black Edition
Engineered exclusively by Norms Studio Equipment. Electrostatically applied thermoset matte powder coat thermally cured at 400Β°F (204Β°C) for zero-glare stealth and accelerated thermal dissipation.
- Zero Specular Glare (<2% Reflectance): Eliminates camera reflections in glass, cars, eyewear, and lens flare hotspots.
- Rapid Radiative Cooldown (Ξ΅ ≈ 0.92): Radiates stored heat 15x faster than chrome when 18kW HMIs/LEDs are cut at wrap.
- Virtual Production (ICVFX) Ready: Absorbs stray spill on Unreal Engine 5 LED volume walls with zero screen bounceback.
- All-Weather Tactile Grip: Textured matte surface ensures positive non-slip handling with gloved or wet hands.
Complete Your Combo Stand Package
Features dual 1-1/8" Junior Receiver & pop-up 5/8" Baby Pin. Pairs with 4-1/2" Lollipop Grip Heads, braked combo caster wheels, and 25β35 lb heavy saddle sandbags.
First-Ever Full Lifetime Warranty on Grip Stands
All Norms grip stands are backed by a complete lifetime warranty against manufacturing defects.
Product Info
| Options / Variations | |
|---|---|
| Color | Chrome or Void Black |
| Specifications - Steel | |
|---|---|
| Weight | 34.75 lbs | 15.8 kg |
| Capacity | TBA |
| Max Height | 14' 2" | 431.8 cm |
| Min Height | 5' 2" | 158.8 cm |
| Folded Width | 1' 3" | 38.1 cm |
| Riser Sections | 3 |
| Footprint | 4' 6" | 137.2 cm |
| Floor Clearance Height | 6" | 15.2 cm |
| Stand Adapter/Head Type | Combo Head: 1-1/8" Junior Recever & 5/8" Baby Pin |
| Leveling Leg | Yes |
| Folded Height | 5' 2.5" | 158.8 cm |
