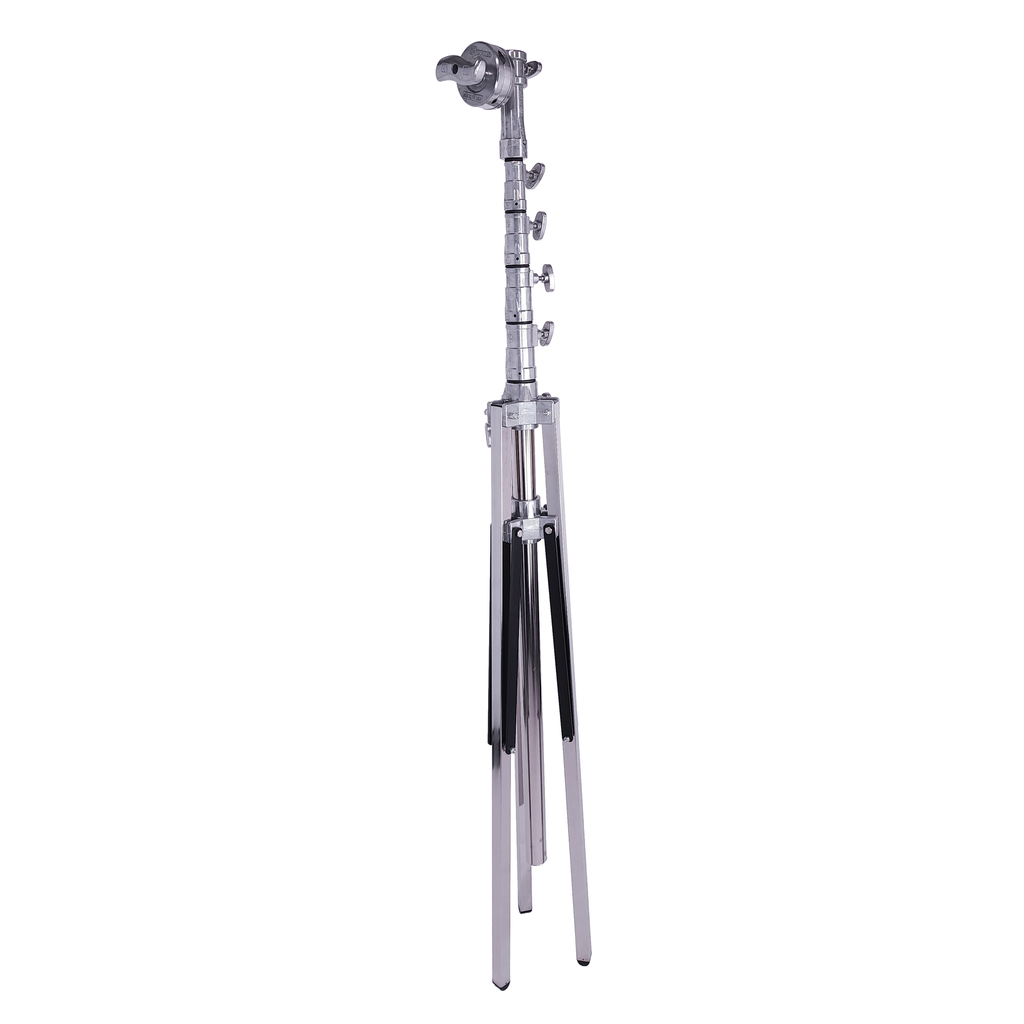

Mombo Walker Stand 4R with Leveling Leg Steel - 1-1/4" Leg
SKU:
GST-HSVMM-4W4
Mombo Walker Stand 4R with Leveling Leg Steel - 1-1/4" Leg
Engineering Fact Sheet & Mechanical Specifications
Elevation & Weight Metrics Imperial / Metric
| Maximum Height | 23' (702.9 cm) |
| Minimum Height | 6' 6" (198.1 cm) |
| Total Stand Weight | 53.5 lbs (24.3 kg) |
| Base Footprint Diameter | 5' 8" (172.7 cm) |
| Working Load Limit (WLL) | 110–150 lbs (50.0–68.0 kg) WLL (Guy-wires required above 15 ft) |
Mechanical Architecture Hardware Standards
| Floor Clearance | 1' 5" (43.2 cm) |
| Folded Dimensions | 6' 8" H × 4" W |
| Riser Column Sections | 4 Telescoping Sections |
| Head / Mounting Interface | 4" Grip head with 1-1/8" Junior Receiver |
| Base & Leg Architecture | 1-1/4" Walker Leg |
| Leveling Leg (Rocky Mtn) | Yes |
Mombo Combo 4R Extreme Elevation & Wind Safety Standards
Hollywood Stage ProtocolsExtreme 24' 4" Elevation & Wind Sail Loading
110–150 LBS HEAVY PAYLOADWith a massive 24' 4" (741.7 cm) maximum reach and 110.0–150.0 lbs (50–68 kg) payload capacity, flying large butterfly/overhead frames (12x12, 20x20) creates immense wind drag (F = ½ · ρ · v² · Cd · A). 3-point 120° guy-wire tie-downs to 50 lb stage weights or earth anchors are mandatory above 15 feet.
1-1/4" Square Steel Box Tube Torsional Rigidity
MASSIVE 6' 2" FOOTPRINTConstructed with massive 1-1/4" square steel legs and a 6' 2" wide stance, delivering maximum torsional rigidity to resist twisting moments from heavy lighting fixtures, condor offsets, and motorized overhead modifiers.
Integrated 4" Lollipop Grip Head Friction
120 N·M BRAKE TORQUEEquipped with an oversized 4" lollipop grip head and 1-1/8" Junior receiver. The massive 4" friction disc delivers 120 N·m (88.5 ft-lbs) clamping torque, locking heavy overhead frame ears firmly under sudden wind gusts without knuckle slip.
Stand Base Geometry & Soundstage Mobility Guide
Stage Mobility ArchitecturesWalker Base with Leveling Leg
1" SQUARE STEEL • HIGH RIGIDITY• Closed Square Box Tube: Delivers extreme torsional rigidity under dynamic cantilevered boom and light modifier moments.
• Triangular Base Footprint: Stances up to 4' 7" (139.7 cm) provide high anti-tipping threshold.
Other Available Hollywood Base Architectures:
Compare alternative models & explore direct linksLow Boy / Star Head Base
ALTERNATIVE• 1.0" (2.5 cm) Ultra-Low Clearance: Inverted spider casting places 1-1/8" Junior Star Head inches above the floor deck.
• Zero-Flex Tracking Platform: 100.0 lbs WLL supports heavy camera sliders (Dana Dolly) and built cinema camera rigs.
• Low Center of Mass: Maximum dynamic stability during rapid camera dolly sweeps and low-angle floor perspectives.
Complete Your Overhead Support Package
Equipped with integrated 4" Lollipop Grip Head and 1-1/8" Junior Receiver. Engineered for Butterfly/Overhead Frames (8x8, 12x12, 20x20), Guy-Wire Tie-Down Kits, and 35–50 lb heavy saddlebags.
First-Ever Full Lifetime Warranty on Grip Stands
All Norms grip stands are backed by a complete lifetime warranty against manufacturing defects.
Product Info
| Options / Variations | |
|---|---|
| Color | Chrome or Void Black |
| Material | Steel |
| Specifications - Steel | |
|---|---|
| Weight | 53.5 lbs | 24.3 kg |
| Capacity | TBA |
| Max Height | 23' | 702.9 cm |
| Min Height | 6' 6" | 198.1 cm |
| Folded Width | 4" | 10.2 cm |
| Riser Sections | 4 |
| Footprint | 5' 8" | 172.7 cm |
| Floor Clearance Height | 1' 5" | 43.2 cm |
| Stand Adapter/Head Type | 4" Grip head with 1-1/8" Junior Receiver |
| Leveling Leg | Yes |
| Folded Height | 6' 8" | 203.2 cm |
