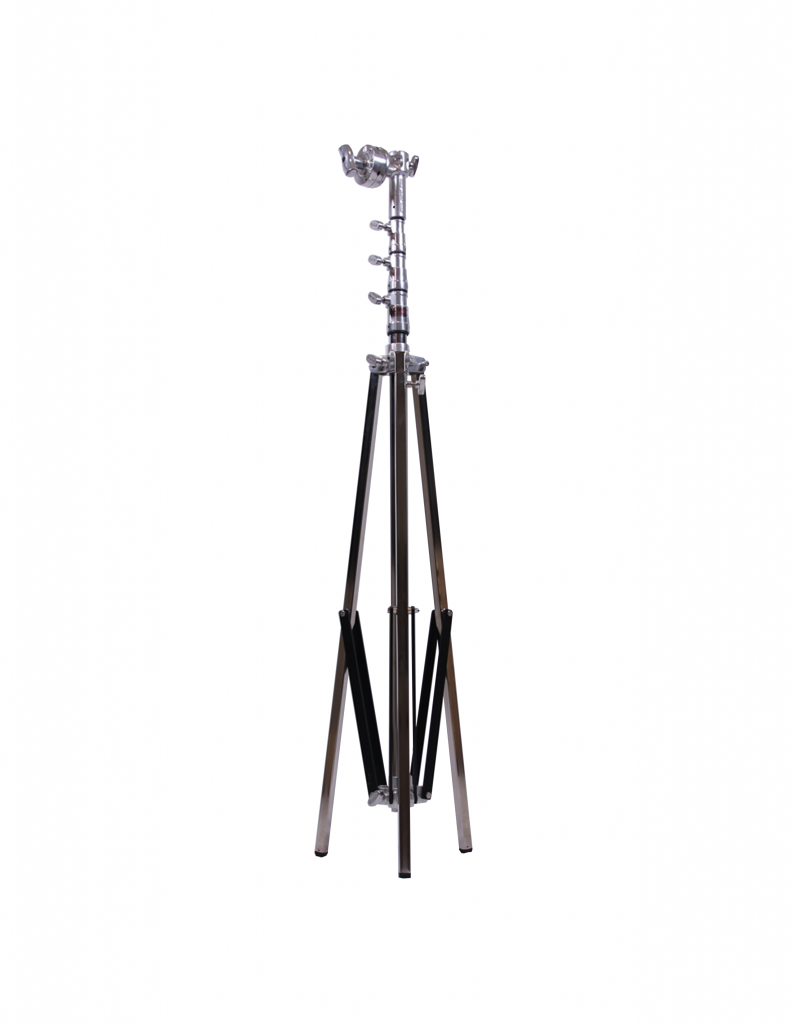

High Grip Walker Stand 3R with Leveling Leg Steel - 1" Leg
Engineering Fact Sheet & Mechanical Specifications
Elevation & Weight Metrics Imperial / Metric
| Maximum Height | 19' (579.1 cm) |
| Minimum Height | 6' 8" (203.2 cm) |
| Total Stand Weight | 40.25 lbs (18.3 kg) |
| Base Footprint Diameter | 5' 2.5" (158.8 cm) |
| Working Load Limit (WLL) | 25.0 lbs (11.3 kg) Standard Working Load Limit |
Mechanical Architecture Hardware Standards
| Floor Clearance | 1' 4" (40.6 cm) |
| Folded Dimensions | 5' 8.5" H × 4" W |
| Riser Column Sections | 3 Telescoping Sections |
| Head / Mounting Interface | 4" Grip head with 1-1/8" Junior Receiver |
| Base & Leg Architecture | 1" Walker Leg |
| Leveling Leg (Rocky Mtn) | Yes |
Cinema Combo Stand Physics & Rigging Standards
Hollywood Stage ProtocolsDual Receiver Interface & High Payload
66.0–88.0 LBS PAYLOADDual mounting top with 1-1/8" Junior Receiver and pop-up 5/8" Baby Pin supports 66.0–88.0 lbs (30–40 kg) direct vertical payload for high-output studio LED spotlights, HMI pars, and heavy junior grip arms.
1" Square Steel Torsional Rigidity
CLOSED BOX SECTIONHeavy-duty 1" square steel legs deliver high torsional rigidity under dynamic cantilevered boom and light modifier moments, resisting twisting under 50+ lb ballast.
Rocky Mountain Leveling Mechanics
DYNAMIC TERRAIN COMPThe independent telescoping leveling leg extends up to 14" to achieve true vertical plumb alignment (≤ 0.5°) on soundstage ramps, curbs, stair risers, and outdoor terrain without apple box cribbing.
Stand Base Geometry & Soundstage Mobility Guide
Stage Mobility ArchitecturesWalker Base with Leveling Leg
1" SQUARE STEEL • HIGH RIGIDITY• Closed Square Box Tube: Delivers extreme torsional rigidity under dynamic cantilevered boom and light modifier moments.
• Triangular Base Footprint: Stances up to 4' 7" (139.7 cm) provide high anti-tipping threshold.
Other Available Hollywood Base Architectures:
Compare alternative models & explore direct linksArched Roller Base (7.0" Cable Clearance)
ALTERNATIVE• 7.0" (17.8 cm) Feeder Cable Clearance: Arched spider casting rolls freely over bundled 4/0 stage power feeder cables and distro boxes.
• Dual-Action Braked Casters: Foot brake simultaneously arrests wheel roll and swivel rotation for positive lockdown.
• Single-Grip Repositioning: Effortlessly reposition 100+ lb overhead packages on studio floors without a multi-person lift crew.
Low Boy / Star Head Base
ALTERNATIVE• 1.0" (2.5 cm) Ultra-Low Clearance: Inverted spider casting places 1-1/8" Junior Star Head inches above the floor deck.
• Zero-Flex Tracking Platform: 100.0 lbs WLL supports heavy camera sliders (Dana Dolly) and built cinema camera rigs.
• Low Center of Mass: Maximum dynamic stability during rapid camera dolly sweeps and low-angle floor perspectives.
Complete Your Overhead Support Package
Equipped with integrated 4" Lollipop Grip Head and 1-1/8" Junior Receiver. Engineered for Butterfly/Overhead Frames (8x8, 12x12, 20x20), Guy-Wire Tie-Down Kits, and 35–50 lb heavy saddlebags.
First-Ever Full Lifetime Warranty on Grip Stands
All Norms grip stands are backed by a complete lifetime warranty against manufacturing defects.
Product Info
| Options / Variations | |
|---|---|
| Color | Chrome or Void Black |
| Material | Steel |
| Specifications - Steel | |
|---|---|
| Weight | 40.25 lbs | 18.3 kg |
| Capacity | TBA |
| Max Height | 19' | 579.1 cm |
| Min Height | 6' 8" | 203.2 cm |
| Folded Width | 4" | 10.2 cm |
| Riser Sections | 3 |
| Footprint | 5' 2" | 158.8 cm |
| Floor Clearance Height | 1' 4" | 40.6 cm |
| Stand Adapter/Head Type | 4" Grip head with 1-1/8" Junior Receiver |
| Leveling Leg | Yes |
| Folded Height | 5' 8.5" | 174 cm |
