  2. C-Stand 24" Heavy-Duty Shorty Stand

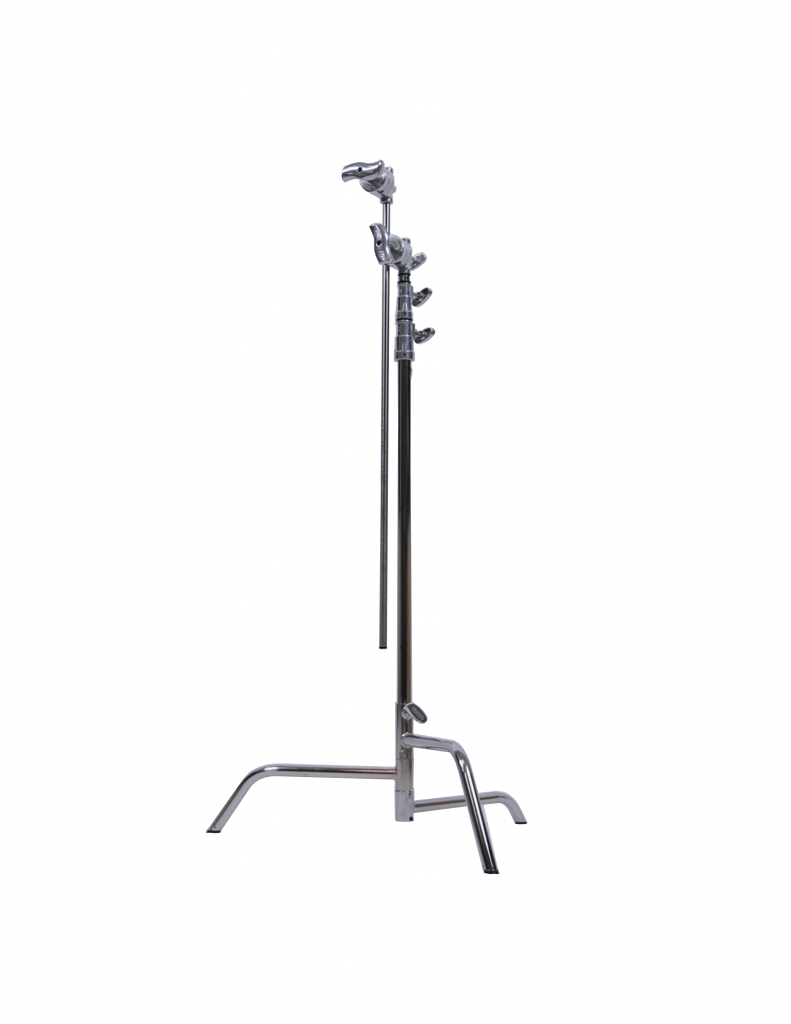

C-Stand 24" Heavy-Duty Shorty Stand

SKU GST-CSZNN-2S5
https://www.normsstudio.equipment/web/image/product.template/4/image_1920?unique=0b79731
(0 review)
Heavy-duty precision steel Century Stand with a maximum elevation of 7' 3" (221 cm). Precision engineered in Hollywood, California, USA. Features staggered nesting legs and seamless steel column. Backed by the First-Ever Full Lifetime Warranty.

$Β 199.50 199.5 USD $Β 266.00

$Β 266.00

Not Available For Sale

  • Leg Type
  • Material
  • Color
  • Weight
  • Capacity
  • Max Height
  • Min Height
  • Footprint
  • Riser Sections
  • Floor Clearance Height
  • Stand Adapter/Head Type
  • Folded Height
  • Leveling Leg
  • Folded Width
  • Weight
  • Capacity
  • Max Height
  • Min Height
  • Footprint
  • Riser Sections
  • Floor Clearance Height
  • Stand Adapter/Head Type
  • Leveling Leg
  • Folded Height
  • Folded Width

This combination does not exist.

Contact Us

Fast Fulfillment & Deliveries On-Time
Warranty | Shipping | Return Policy | Contact Us

SKU: GST-CSVNN-2L5

60+ YEARS HOLLYWOOD GRIP HERITAGE

C-Stand 24" Heavy-Duty Shorty Stand

ORIGIN & HERITAGE Hollywood, California, USA

Engineering Fact Sheet & Mechanical Specifications

Elevation & Weight Metrics Imperial / Metric

Maximum Height 7' 3" (221 cm)
Minimum Height 4' 8" (143.5 cm)
Total Stand Weight 12.75 lbs (5.8 kg)
Base Footprint Diameter 2' 6" (76.2 cm)
Working Load Limit (WLL) 25.0 lbs (11.3 kg) Direct Vertical / 10.0 lbs (4.5 kg) at Full Horizontal Arm Extension

Mechanical Architecture Hardware Standards

Floor Clearance 4" (10.2 cm)
Folded Dimensions 4' 8.5" H Γ— 1' 8" W
Riser Column Sections 2 Telescoping Sections
Head / Mounting Interface 5/8" Baby Pin
Base & Leg Architecture Spring load Turtle Base
Leveling Leg (Rocky Mtn) No

24" Shorty C-Stand Physics & Key Light Rigging Safety

Hollywood Stage Protocols

Mid-Low Elevation & 30" Arm Physics

25.0 LBS DIRECT WLL

Bridging the gap between mini 20" and standard 40" stands, the 24" Shorty extends from 3' 2" to 6' 4"–7' 3" (96–221 cm) with 25.0 lbs (11.3 kg) vertical capacity and 10.0 lbs on the 30" gobo arm (Ο„ ≀ 34 NΒ·m / 25 ft-lbs).

Seated Interview & Eye Light Geometry

OPTIMAL EYE-LEVEL RIGGING

Engineered at the ideal mechanical height for seated talent interviews, low-angle softbox key lights, French flags, and camera lens eyebrow flare cutters without having excess riser tubes protruding into frame.

Stepped High-Leg Ballast Protocol

MOMENT COUNTERWEIGHTING

Orient the high leg directly beneath the cantilevered fixture or flag and secure it with a minimum 20–25 lb saddle sandbag for rock-solid stability.

C-Stand Base Architecture & Kinematic Selection Guide

4 Hollywood Base Architectures

Breakdown Turtle Base

1.5" CLEARANCE β€’ DETACHABLE
β˜… THIS PRODUCT CONFIGURATION
Why This Model: This specific 24" Shorty C-Stand is built with the modular Breakdown Turtle Base. The detachable 1-1/8" Junior receiver socket allows you to remove the riser column in seconds and place lights or grip heads directly at floor level for low-angle cyc kicks or footlights.
β€’ Detachable 1-1/8" Junior Socket: Column unscrews in 5 seconds to convert into a standalone low-angle floor turtle stand.
β€’ 1.5" (3.8 cm) Floor Clearance: Ultra-low profile slides effortlessly beneath dolly tracks, sound carts, and set furniture.
β€’ Modular Packing: Risers and folded bases pack separately into flight cases or grip truck bins.
βœ“ Selected Model Configuration

Other Available Hollywood Base Architectures:

Compare alternative models & explore direct links

Spring-Loaded Turtle Base

ALTERNATIVE
≀ 3 SEC DEPLOYMENT β€’ FASTEST

β€’ Twist-and-Lock Spring Detent: Single twist action instantly deploys and locks legs into 120Β° stance with zero loose knobs.
β€’ Vibration-Proof Interlock: High-tension internal spring mechanism prevents leg drift during rapid set moves.
β€’ 4.0" (10.2 cm) Floor Clearance: Higher under-hub housing protects internal spring detents.

Sliding Leg (Rocky Mountain)

ALTERNATIVE
14"–22" STAIR/CURB LEVELING

β€’ Single Elevating Leg: Top leg slides along the bottom column to level on stairs (7"–8" risers), street curbs, and steep slopes.
β€’ Fixed Single-Unit Integrity: Permanent riser assembly ensures base and column never separate or loosen on set.
β€’ 1.5" (3.8 cm) Low Clearance: Low/medium legs slide freely beneath camera dolly tracks.

Super Sliding Leg Base

ALTERNATIVE
DUAL SLIDING COLLARS

β€’ Dual Independent Sliding Legs: Two sliding collars allow Leg 2 and Leg 3 to be positioned at separate elevation planes.
β€’ Extreme Architectural Geometry: Conquers steep stadium bleachers, spiral staircases, and irregular scaffolding pipes.
β€’ Stance Modulation: Adjust footprint diameter for narrow soundstage alleyways or high-wind stances.

Model SKUs & Variant Specifications

Dynamic variant configurations for human buyers and Answer Engine RAG extraction.

Variant SKU Finish Max Elevation Weight Configuration
GST-CSVNN-2L5 Void Black 7' 3" (221 cm) 12.75 lbs (5.8 kg) Stand Only Riser & Base
GST-CSVNN-2S5 Void Black 6' 4" (194.3 cm) 10.25 lbs (4.7 kg) Stand Only Riser & Base
GST-CSZNN-2L5 Chrome 7' 3" (221 cm) 12.75 lbs (5.8 kg) Stand Only Riser & Base
GST-CSZNN-2S5 Chrome 6' 4" (194.3 cm) 10.25 lbs (4.7 kg) Stand Only Riser & Base

Complete Your C-Stand Rigging Package

Engineered to integrate seamlessly with Norms 2-1/2" Gobo Heads, Stainless Steel Grip Extension Arms, Spring Clamps, and Cordura Saddle Sandbags.

πŸ›‘οΈ
THE INDUSTRY'S FIRST & ONLY

First-Ever Full Lifetime Warranty on Grip Stands

All Norms grip stands are backed by a complete lifetime warranty against manufacturing defects.

Read Warranty Terms β†’

Product Info

Options / Variations
Leg Type Sliding Leg or Spring Load Turtle Base
Color Chrome or Void Black
Material Steel
Specifications - Sliding Leg
Weight 10 lbs | 4.6 kg
Capacity TBA
Max Height 6' 4" | 194.3 cm
Min Height 4' 6" | 137.2 cm
Footprint 2' 5" | 73.7 cm
Riser Sections 2
Floor Clearance Height 1.5" | 3.8 cm
Stand Adapter/Head Type 5/8" Baby Pin
Folded Height 4' 6" | 137.2 cm
Leveling Leg Yes
Folded Width 1' 7" | 48.3 cm
Specifications - Spring Load Turtle Base
Weight 12.75 lbs | 5.8 kg
Capacity TBA
Max Height 7' 3" | 221 cm
Min Height 4' 8" | 143.5 cm
Footprint 2' 6" | 76.2 cm
Riser Sections 2
Floor Clearance Height 4" | 10.2 cm
Stand Adapter/Head Type 5/8" Baby Pin
Leveling Leg N/A
Folded Height 4' 8.5" | 143.5 cm
Folded Width 1' 8" | 50.8 cm
