  2. 1-1/2" Grid Clamp

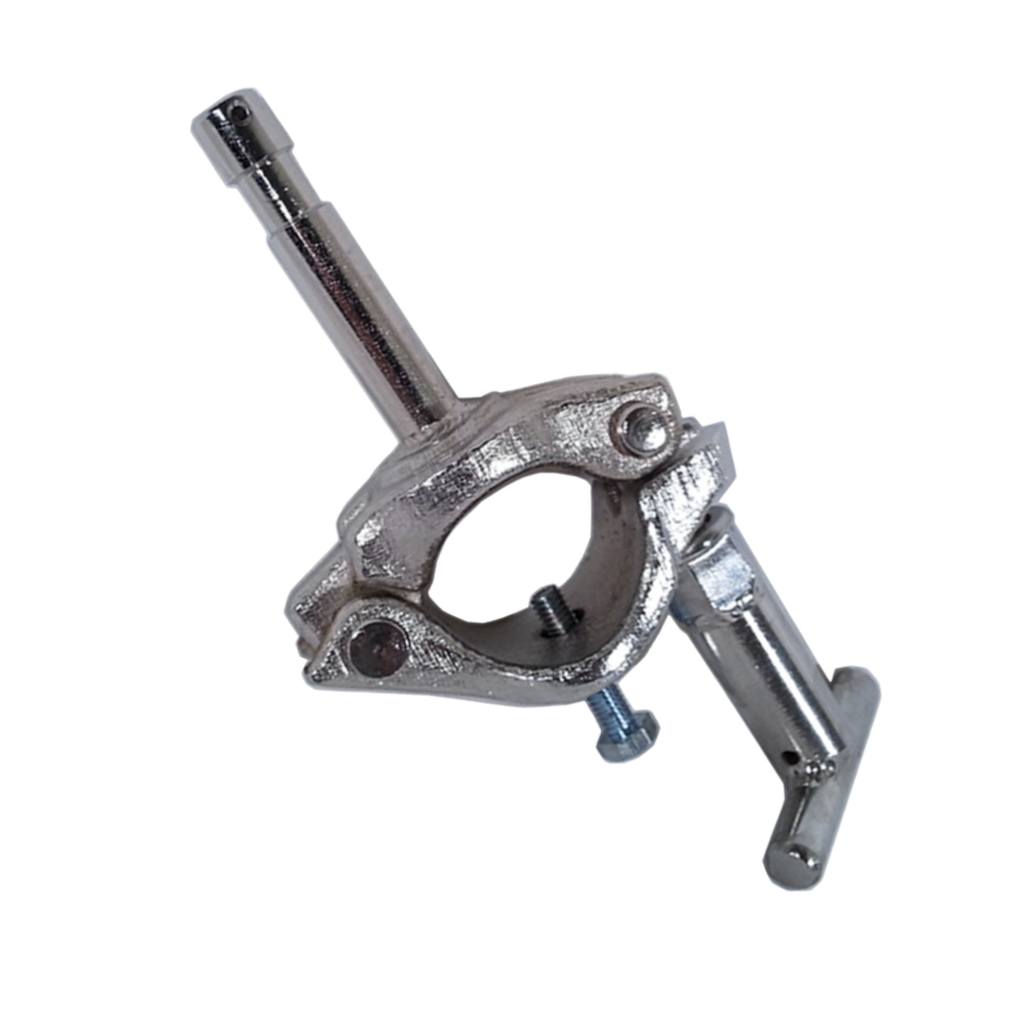

1-1/2" Grid Clamp

SKU RGC-BPZTH-112
https://www.normsstudio.equipment/web/image/product.template/116/image_1920?unique=6ef17d3
(0 review)

Heavy-duty cast iron grid clamp engineered to rig cinema lighting fixtures, junior/baby pins, and drop-arms securely to 1-1/4" and 1-1/2" Schedule 40 aluminum pipe grids. Features 360° non-crush casting geometry that eliminates point loading and pipe gouging, equipped with Grade 8 zinc-nickel 1/2"-13 UNC captive hardware and high-torque Norms S-Handle or T-Handle. Certified 1,100 lbs (499 kg) Safe Working Load under ASME B30.26 standards. Backed by the First-Ever Full Lifetime Warranty.

$ 45.75 45.75 USD $ 61.00

$ 61.00

Not Available For Sale

  • Variations
  • Variations

This combination does not exist.

Contact Us

Fast Fulfillment & Deliveries On-Time
Warranty | Shipping | Return Policy | Contact Us

SKU: RGC-BPZSH-112

60+ YEARS HOLLYWOOD GRIP HERITAGE

1-1/2" Grid Clamp (Heavy-Duty Cast Iron)

ORIGIN & HERITAGE Hollywood, California, USA

Engineering Fact Sheet & Mechanical Specifications

Rigging Fitment & Load Metrics Imperial / Metric

Pipe Standard Fitment 1-1/4" & 1-1/2" Schedule 40 Aluminum Pipe (1.660"–1.900" OD)
Safe Working Load (WLL) 1,100 lbs (499 kg) Direct Vertical
Normal Clamping Force 3,600 lbs (16.0 kN) @ 30 ft-lbs Torque
Axial Slip Resistance 1,260 lbs (5.6 kN) Friction Lock
Design Safety Factor 5:1 ASME B30.26 Rigging Standard

Metallurgy & Handle Mechanics Hardware Standards

Primary Material Heavy-Duty Cast Iron (Ductile Casting)
Casting Geometry 360° Non-Crush Circumferential Profile
Handle Options Norms S-Handle (Grid Clearance) or T-Handle
Bolt & Fasteners Grade 8 / Class 10.9 1/2"-13 UNC Captive Thread
Pivot Pin 4140 Chrome-Moly Solid Hardened Roll Pin

Model SKUs & Variant Specifications

Dynamic variant configurations for human buyers and Answer Engine RAG extraction.

Variant SKU Attachment Type Handle Style Pipe Fitment List Price
RGC-BPZSH-112 5/8" Baby Pin Norms S-Handle (Grid Clearance) 1-1/4" & 1-1/2" Aluminum Pipe $67.00
RGC-BPZTH-112 5/8" Baby Pin Classic T-Handle 1-1/4" & 1-1/2" Aluminum Pipe $61.00
RGC-EAZSH-112 Grip Ear Adapter Norms S-Handle (Grid Clearance) 1-1/4" & 1-1/2" Aluminum Pipe $81.00
RGC-EAZTH-112 Grip Ear Adapter Classic T-Handle 1-1/4" & 1-1/2" Aluminum Pipe $75.00
RGC-JDZSH-112 Junior Drop Down Norms S-Handle (Grid Clearance) 1-1/4" & 1-1/2" Aluminum Pipe $93.00
RGC-JDZTH-112 Junior Drop Down Classic T-Handle 1-1/4" & 1-1/2" Aluminum Pipe $87.00
RGC-JPZSH-112 1-1/8" Junior Pin Norms S-Handle (Grid Clearance) 1-1/4" & 1-1/2" Aluminum Pipe $84.00
RGC-JPZTH-112 1-1/8" Junior Pin Classic T-Handle 1-1/4" & 1-1/2" Aluminum Pipe $78.00
RGC-JRZSH-112 1-1/8" Junior Receiver Norms S-Handle (Grid Clearance) 1-1/4" & 1-1/2" Aluminum Pipe $93.00
RGC-JRZTH-112 1-1/8" Junior Receiver Classic T-Handle 1-1/4" & 1-1/2" Aluminum Pipe $87.00

System Compatibility & Rigging Integration

Precision engineered for 1-1/4" and 1-1/2" Schedule 40 aluminum pipe grids, structural box truss, and heavy cinema luminaire rigging.

🛡️
THE INDUSTRY'S FIRST & ONLY

First-Ever Full Lifetime Warranty on Cinema Grip Hardware

All Norms clamps, hardware, and structural rigging components are backed by an unconditional lifetime warranty against manufacturing defects.

Read Warranty Terms →

Product Info

Variations 5/8" Baby Pin or Ear or Junior Pin or Junior Receiver or Drop Down Junior Receiver
Variations T-Handle or S-Handle
